At Harry’s Locksmith, we know true security begins long before the lock clicks. One of the most overlooked, yet essential, components of door performance and building efficiency is weatherstripping.
Whether you’re managing a school, healthcare facility, office building, warehouse, or retail space, properly sealed doors can make all the difference by protecting your property from the elements, reducing energy costs, and enhancing comfort and security.
Why Door Sealing Matters:
Energy Efficiency- Stop air leaks and reduce heating/cooling loss
Moisture Protection – Keep rain, snow, and excess moisture that can lead to water damage and warping.
Noise Reduction – Minimize disruptive outside noise from traffic, machinery, or foot traffic.
Pest Control – Seal up the tiny gaps that bugs and rodents love to sneak through.
Improved Door Functionality – Prevent slamming, rattling, or uneven wear on door frames and hardware, while also making it more difficult for intruders to break into.
A Closer Look at the Key Components
What Seals the Sides of a Door?
Door Gaskets
Stop-mounted gaskets are metal strips (usually aluminum) that are attached to the door frame or the stop molding using screws. These strips have a rubber or brush seal built into them, which sticks out slightly to create a tight seal when the door closes. They’re installed along the top and sides of the frame to block air, noise, smoke, or moisture from getting through.
images (vinyl bulb gasket, pile gasket)
Weatherstripping
Weatherstripping is a simple type of gasket that helps seal gaps around a door. It’s either stuck to the frame with peel-and-stick adhesive or inserted into a groove (called a kerf) in the frame.
images (meeting astragal, overlapping astragal, T-shaped astragal, brush astragal)
Astrigals
Similar to weatherstripping, astragals are mounted to the edge of a door—often where two doors meet, but also on single doors—to close the vertical gap and enhance sealing and security.
- Seal against weather, drafts, insects, and debris
- Improve security by reinforcing the meeting stile* and sealing lock areas
- Enhance sound, smoke, and flame resistance, especially in fire-rated or acoustic doors
*a stile is the vertical edge where two doors meet when closed – especially in a pair of double doors. It is called a “stile” because in door construction, the vertical parts of the door are called stiles (while horizontal parts are called rails). The meeting stile is the edge of each door leaf that faces the other one
What Seals the Bottom of a Door?

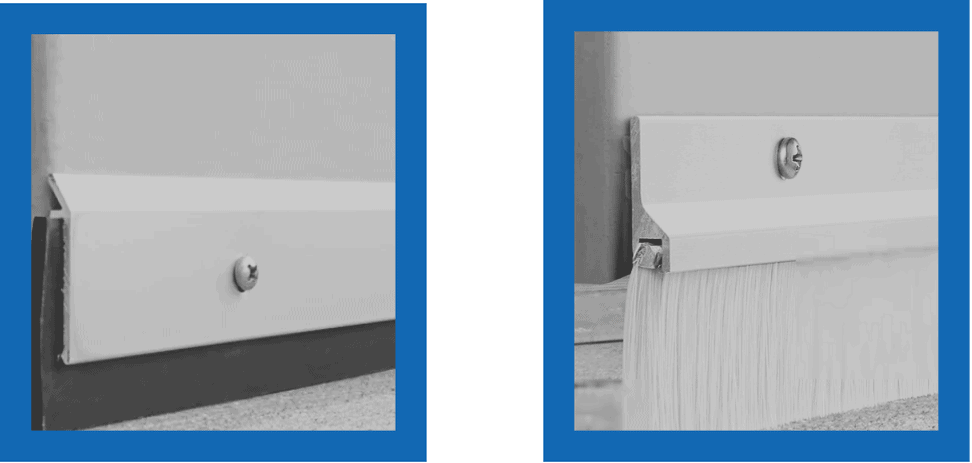

Door Sweeps
A door sweep is a strip attached to the bottom edge of a door, typically on the interior side. It’s made from rubber, vinyl, or brush bristles and lightly sweeps along the floor as the door closes. Door sweeps help block drafts, dust, insects, smoke, and light, making them ideal for exterior doors or doors with smooth flooring like tile or hardwood.

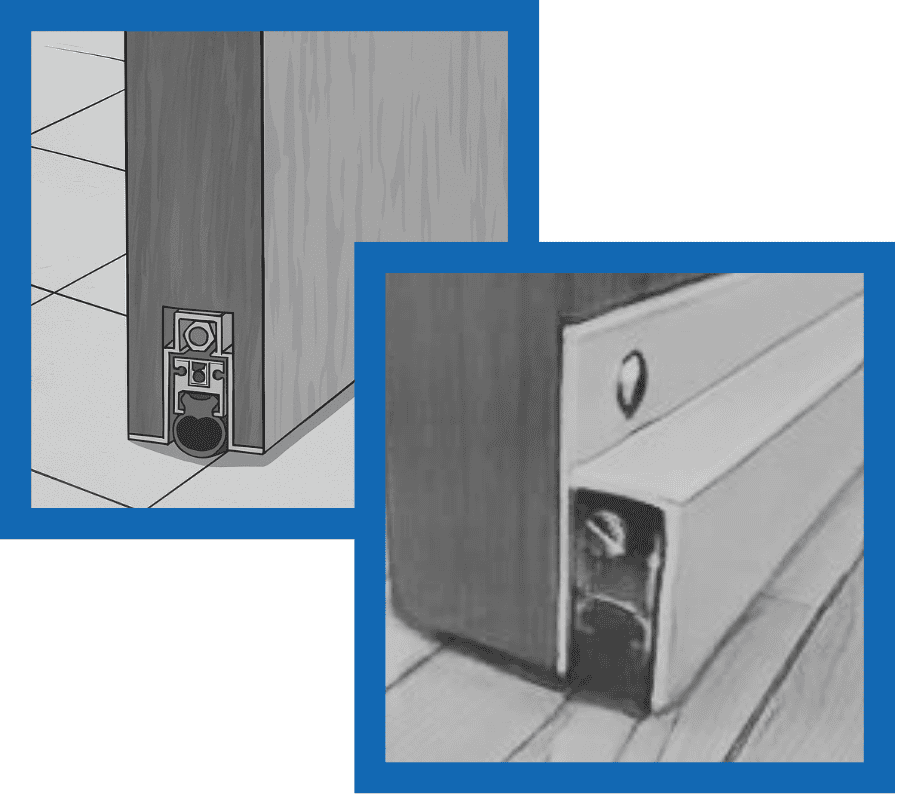

Drop Seals
A drop seal, also known as a door bottom, is installed on the underside of a door to seal the gap beneath it. It drops down only when the door closes to create a snug, secure seal. This design prevents unnecessary drag on flooring, making it ideal for use over carpet, tile, thresholds, or uneven surfaces. Drop seals are especially beneficial for acoustic and fire-rated doors, as they block sound, smoke, drafts, dust, and light. Their automatic action supports ADA compliance, reduces wear compared to fixed sweeps, and offers a clean, discreet appearance, making them a smart choice for offices, hospitals, studios, and other commercial settings where performance and presentation matter.

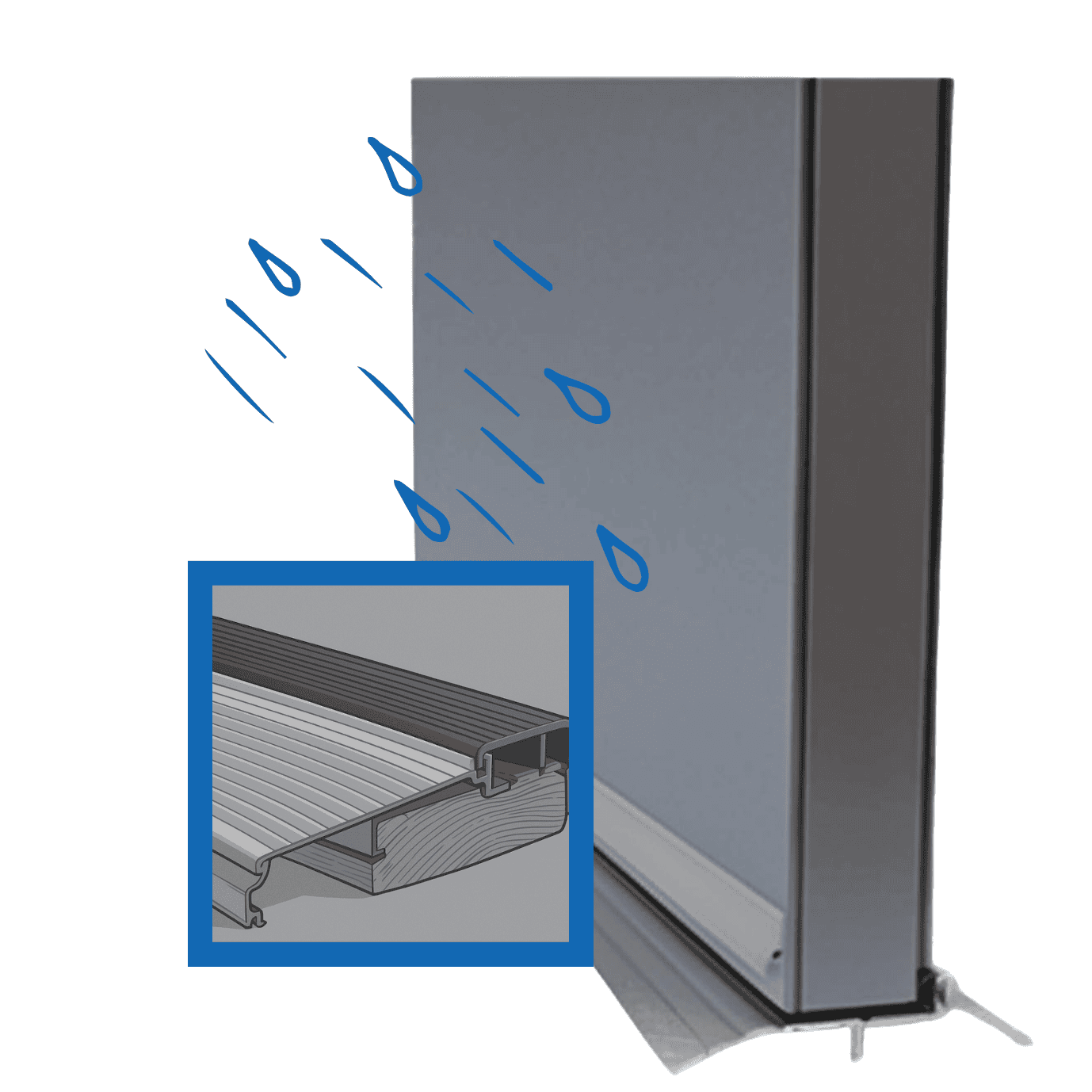

Thresholds
A threshold is a strip (typically made of metal) installed on the floor beneath a door to bridge the gap between the door and the floor. It’s often paired with a drop seal or a sweep to create a tight, durable seal. Thresholds help improve energy efficiency by blocking drafts and preventing water, dust, and pests from entering. They also support ADA compliance by providing smooth transitions for wheelchairs and foot traffic. Especially useful in commercial buildings and high-traffic exterior doors, thresholds enhance weather resistance, and reduce wear on door seals.
What is a Raindrip?
A raindrip is a metal or plastic drip cap installed above the top of a door, typically above the head casing or frame. It projects outward and downward to deflect rainwater away from the door surface and opening, helping prevent water from seeping in through the top and protecting the door from moisture damage.
